X19-07BJ1-HEHE-A14

X19-07BJ1-HEHE-A14

Availability:
Low stock
by Muncie
$2,188.42 - $2,188.42
$2,188.42
$2,188.42 - $2,188.42
$2,188.42

We use this motor for the Keyed B87333 and B61050 pumps.

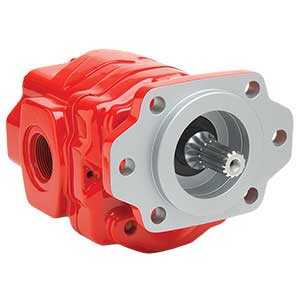

Muncie’s Optimum Series high performance gear pumps/motors offer high pressure capabilities and are designed for durability and long life for many truck and mobile equipment applications. Full featured design allows for reduced inventory requirements and installation flexibility. The Optimum Series offers superior benefits &  added value in a cost competitive package unmatched by the competition.

Why the Optimum Pump?

  • Patented Opti-Grip technology resists casting separation by press fitting two piece castings together for greater structural integrity over other traditional designs
  • Rigid pump design for long life and maintained peformance
  • Allows for higher pressure capabilities
  • Available in tandem and triple configurations
  • 13 tooth gear design provides smoother operation and reduces hydraulic noise
  • Standard bi-directional design with both side and rear ports
  • Premier performance for a wide variety of applications across several industries



PUMP SPECIFICATIONS
Model Number Displacement in3 (CC) MAX* RPM MIN* RPM MAX Pres. PSI (BAR) Ports (ODT) Side & Rear Ports (SF) Side Only Weight lbs. (Kg)
X14 3.18 (52.1) 3000 800 4350 (300) -20 2.0” X 1.25” 52.9 (24.0)
X16 3.83 (62.9) 3000 600 4350 (300) -20 2.0” X 1.25” 54.7 (24.8)
X19 4.44 (72.8) 3000 600 3750 (260) -24 2.0” X 1.25” 55.9 (25.3)
X23 5.20 (85.3) 2750 600 3500 (240) -24 2.0” X 1.25” 58.0 (26.3)
X25 5.69 (93.4) 2750 600 3250 (225) -24 2.0” X 1.25” 59.3 (26.9)
X27 6.35 (104) 2500 600 3000 (210) -24 2.0” X 1.25” 61.1 (27.7)
X30 7.01 (115) 2500 600 2500 (190) -24 2.0” X 1.5”  62.9 (28.5)
X33 7.78 (128) 2500 600 2500 (190) -24 2.0” X 1.5”  65.0 (29.5)
X36 8.43 (138) 2250 600 2250 (155) -24 2.0” X 1.5”  67.0 (30.4)

Notes:

  • MAX RPM is shown at 0 in.hg. and with an appropriately sized inlet hose
  • MAX motor back pressure is not to exceed 150 PSI (10 BAR)
  • MAX inlet vacuum is not to exceed 5in.hg. (0.17 BAR)
  • Weights shown are for single, direct mount pumps
  • Porting shown is standard pump porting, other porting configurations are available
  • Motor applications will require a case drain to be plumbed directly back to the reservoir due to excessive return line pressures or surges
